Sunny Lady

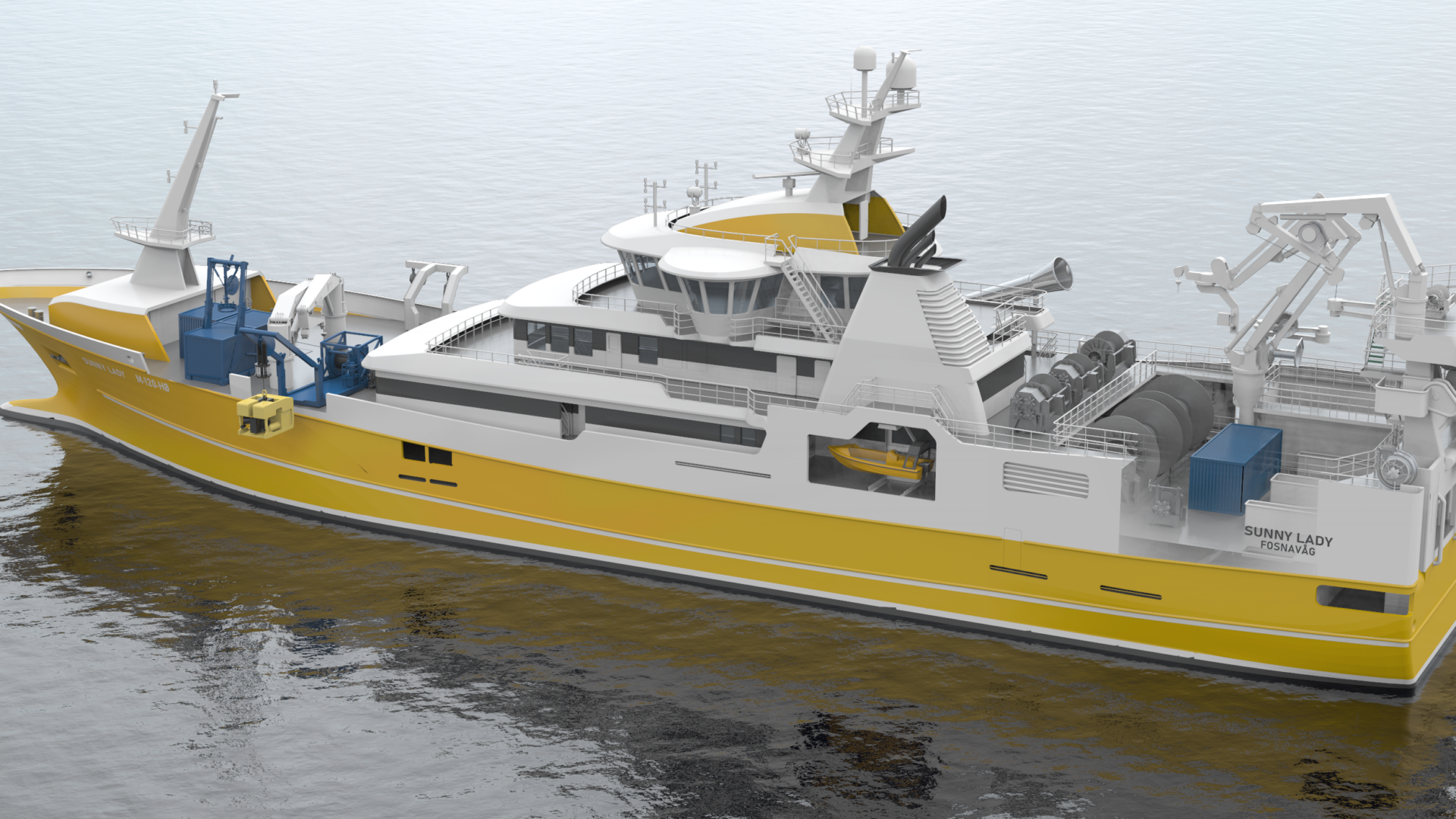

M/V Sunny Lady – our vessel for geophysical surveys

The M/V Sunny Lady is equipped to offer robust geophysical site investigation survey services.

Shallow- & deep-water operations;

• EM2040 MKII 0.7º: MBES / MBES backscatter/ water column data
• SBP Innomar Medium 2-22kHz
• SSS 4205 Edgetech Tri-freq 120/410/850kHz
• 1 x G882 Geometrics Magnetometer
• UHRS Sparker (80 channels @ 2m Group Interval)
• Starlink communication platform
• HiPAP positioning system
• Drop-down keel

SBP
Shallow subsurface: geohazard detection, ground modelling

• Innomar Medium 100

Main characteristics

• SBP Frequency: 100kHz primary, 4-15kHz secondary
• Penetration: 10-15m depending on geology
• Vertical resolution : 0.25m
• Acquisition software: Innomar
• Interpretation software: Sonarwiz/Kingdom Suite
• Interpretation: cross correlation to UHRS for soil type zonation shallow features
