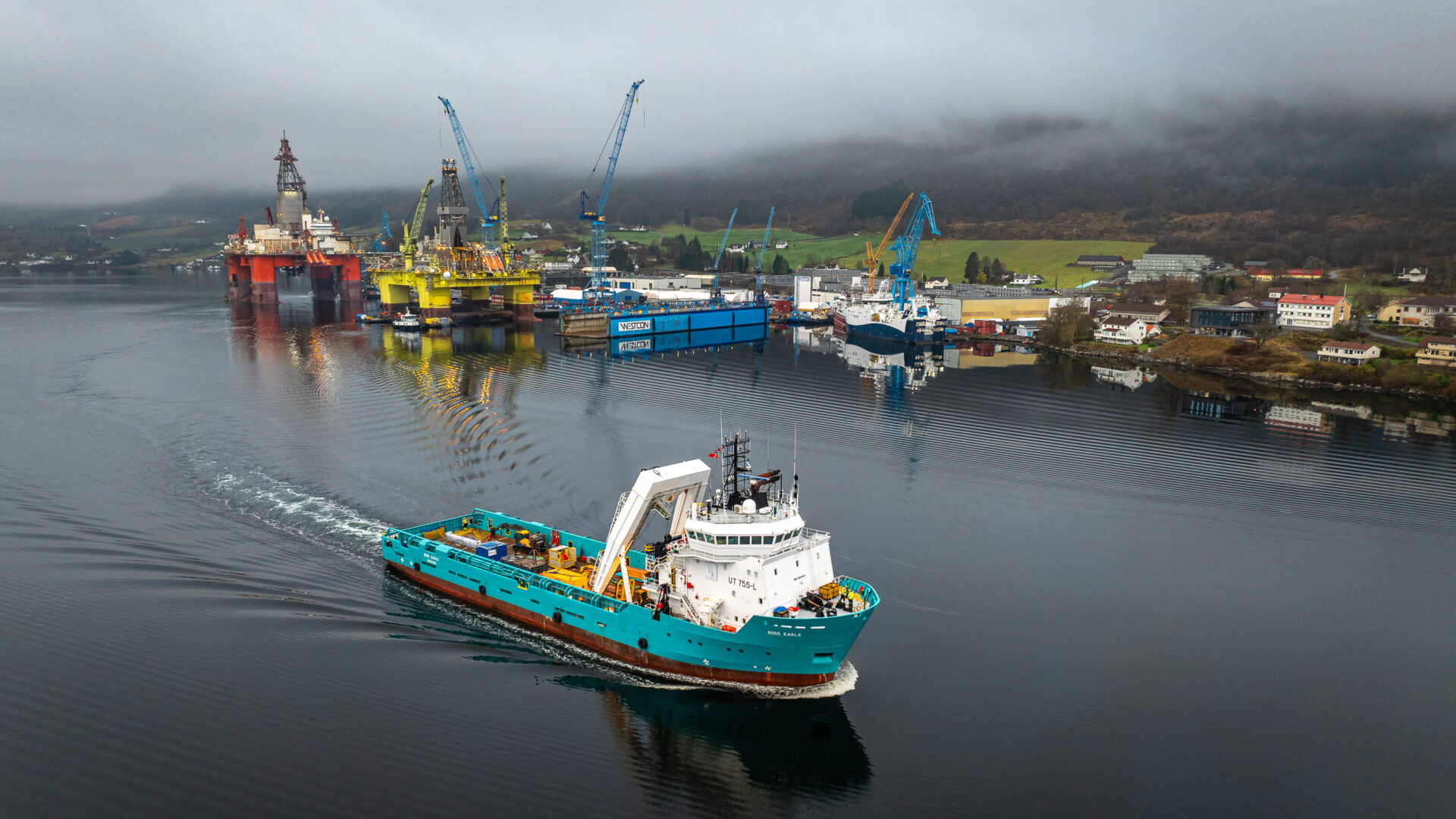

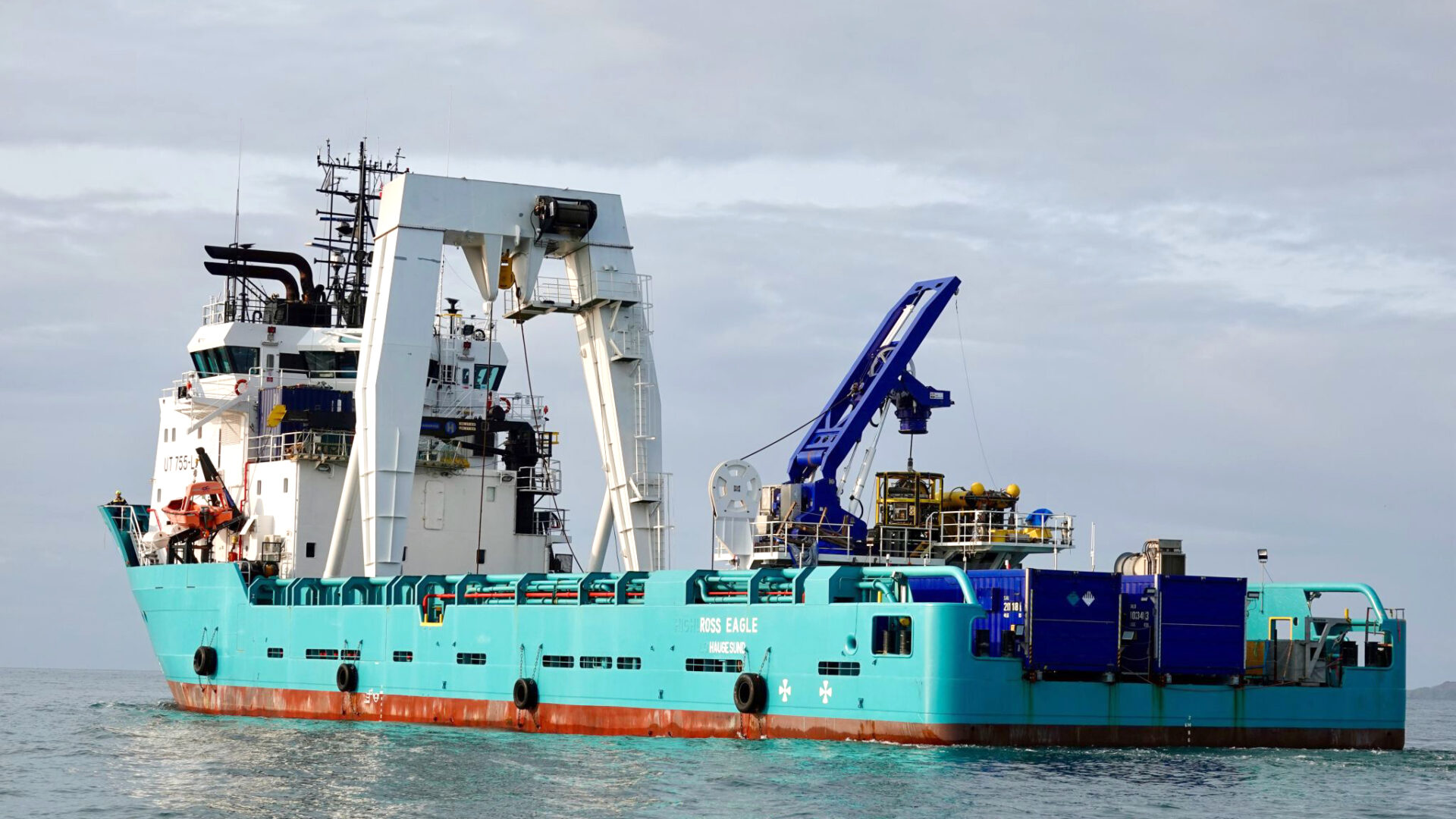

Ross Eagle

M/V Ross Eagle is our cost-effective solution for offshore and subsea operations

Technical specifications

Built: 2003
Type: Geotechnical survey vessel
Builder: Brattvaag Skipsverft, Norway
Flag: Norway
Classification: DNV +1A1 Supply vessel SF, EO, Dynpos AUTR

Main characteristics

LOA: 72 m
Breadth (moulded): 16 m
Depth (mould to sh.dk): 7 m
Draft (max): 5.9 m
GRT: 2,244 T
NRT: 936 T
Deadweight: 3,200 T

Machinery

Main Engines: 2 x 2,725 BHP
Shaft Alternators: 2 x 1,690 KVA
Thrusters Bow: 1 x 800 BHP
Thruster Azimuth: 1 x 1,000 BHP
Thrusters Stern: 2 x 800 BHP
Rudders: 2 x High Lift
Propellers: 2 x CPP
Capstans: 2 x 8 T
Tugger Winch: 2 x 10 T

Dynamic Positioning System (CLASS II)

Kongsberg Simrad SDP 21 (DP II)
2 x DPC 11 Controller Unit
“Green” DP Software module installed
RRM Joystick

References

HiPAP acoustic system – Kongsberg 502 DGPS on own line
Light weight Taut Wire (Mk 12)
Fan beam laser

Survey rooms

6 m x 3.5 m survey room (main deck)
ROV controll room
19” racks and 220v power
Telemetry / video / data link to bridge and
Client cabins

Accomodation

14 X 1 Man
12 x 2 Man

Cargo Capacity

Deck Area: 640 m2
Deck Load: 1,500 T
Fuel Oil: 916.8 m3 @ 100%
Potable Water: 796.3 m3 @ 100%
Drill Water: 1,152.4 m3 @ 100%
Oil Based Mud*: 796.3 m3 @ 100%
Base Oil: 208 m3 @ 100%
Brine*: 769.3 m3 @ 100%
Dry Bulk: 256 m3 @ 100%

* Mud/Brine tanks –
8 Dual purpose tanks (4839 bbls)
8 mud or 6 mud / 2 brine, 4 mud / 4 brine etc.
with complete product segregation

Other features

Moon Pool (4.35 x 3.8 m) passively stabilised
Ø 50cm survey tube for “hull mounted equipment”

Deck equipment

A-frame over moon-pool 100Te
AHC winch (for a-frame) up to 100Te capacity
CT winch (for a-frame) 8 Te capacity
Deck Crane 1 x 5T @ 10m
Pipe- / Deck equipment manipulator 5T
Aft deck reinforced for 150Te A-frame

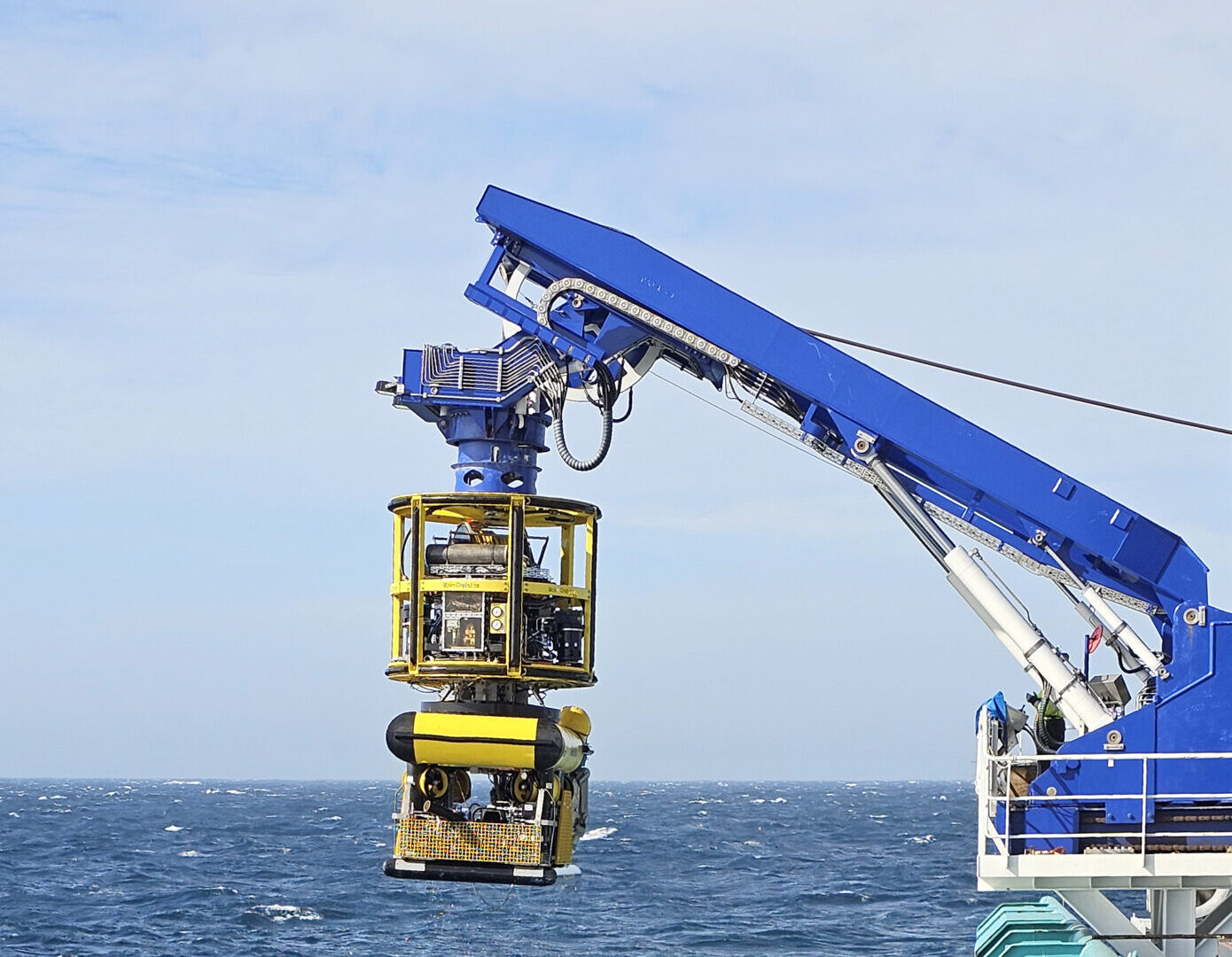

ROVs
JM Robotics – HD3 Observation ROV <350m
IKM – Merlin WR200 Work ROV
